Equations-of-motion module includes standard nonlinear six degree-of-freedom equations of motion used for aircraft flight dynamics analysis.

Aerodynamic model consists of several sub-modules for determining forces and moments produced by various parts of the plane. We use various graphs for WWII planes to determine aerodynamic forces. The model computes aerodynamic effects due to Mach number, angle of attack, angle of sideslip including compressibility, temperature, and density of air at altitude, and stalls. Aerodynamic effects due to configuration changes include flaps, landing gear, external stores and airframe damages. Aerodynamic effects due to ground effect are also modeled, so it is possible to fly at level of 4-5 meters over the ground as in the real flights.

Propulsive system module includes engine and propeller models. Engine model computes the current power of engine depends of controls state, temperature and altitude. Temperature mode of engine depends of water and oil radiators state. Propeller model includes airspeed and altitude effects and propeller moments.

Mass properties model takes into account plane construction model, its "empty mass", fuel mass, ammo load, mass moments and products of inertia.

Landing gear module computes forces and moments of takeoff/landing.

The result is that we have a computer model that is very close to real one. The common FM model, described above is tuned for each aircraft with single- or multiengine. Tuning is based on real trial docs and drawings.

Our FM and physics programmers and myself have the experience of controlling real planes (with a trainer pilot). Most flights were in the cockpit of a Yak-52, a two seat sport plane. We had a chance to take the flight controls and perform many intense maneuvers including those with a high degree of overloading. The most important aspect of the Yak 52 for us is that this plane itself was created with the benefit of the experience of Yakovlev's WWII fighter development and has very similar construction, characteristics and cockpit details to WWII fighter planes. I'm sure that the personal experience of real flight control is one of the most important requirements for any developers who are developing a flight simulation.

Click to continue

The FLYABLE planes include the following:

• IL-2 Single seat: 1940 year production with 2x20mm machine cannons.
• IL-2, Single seat: 1941 year production with 2x23mm machine cannons.
• IL-2M Type-2: 1942 year production. With the seat of rear gunner.
• IL-2 Type 3: 1943 year production with new 15-degree swept-back outer wing portions and new 1720 hp AM-38F engine.
• IL-2 Type 3M: 1943 year production with 2x37mm anti-tank machine cannons.
• IL-2T. Torpedo bomber: 1943 year production for Soviet Naval Aviation.
• IL-2I. Anti bomber fighter: Based on single seat variant. 7.62mm machine guns were deleted to save weight, as were most, if not the entire rocket rails.
• LaGG-3: 1941 initial series production with M-105A engine,
• LaGG-3: 1944. The last and best series with M-105PF2 engine

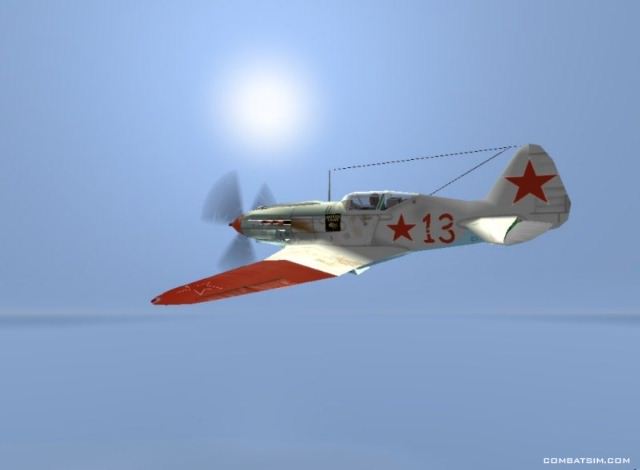

• MiG-3: 1940-41 year production. High altitude fighter.
• MiG-3U: 1942-45. Equipped with new engine and new 20 mm canon.
• P-39N: (American lend-lease)
• P-39Q: (American lend-lease. After all modifications made by recommendations of Russian research institute ZAGI and Russian pilots suggestions this US plane became one of the most popular aircraft of WWII Soviet Air Forces)
• Bf-109E-4
• Bf-109G-2
• Bf-109G-6
